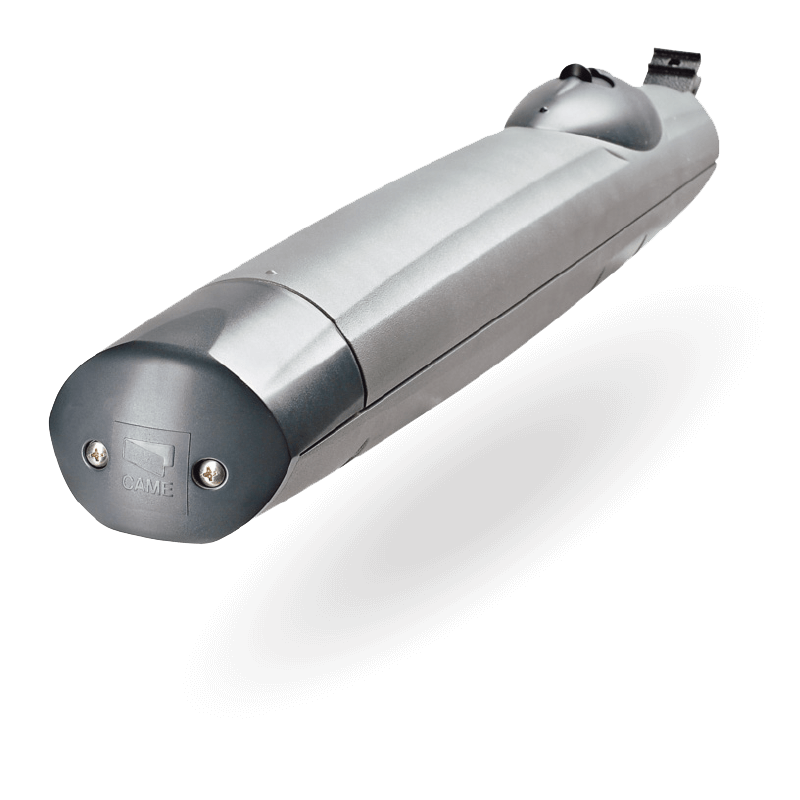

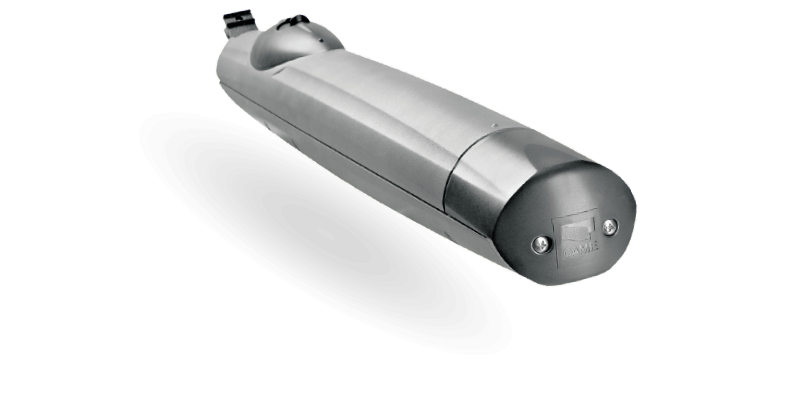

AMICO
SWING GATE MOTOR
The Amico swing gate motor is the ideal solution for residential settings, with gate leaves of up to 1,8 metres.
MAIN FEATURES
The Amico swing gate motor is a bespoke and exclusive design, with a trilobe key release system. It has adjustable mechanical stops for memorizing gate travel with simplified connections and one, three-conductor cable. Other features include die-cast aluminium
supporting half-shells, fully covered and protected endless screw, self-diagnosing safety devices and operational in emergency mode during power outages. Tested in compliance with the law.

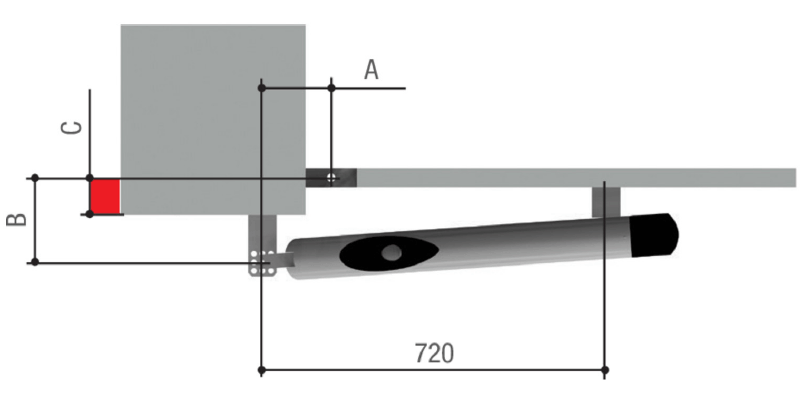

APPLICATION DIMENSIONS
MODEL (A1824)
| LEAF OPENING (°) | A | B | C Max. |
| 90 | 130mm | 130mm | 60mm |
| 120 | 130mm | 110mm | 50mm |
OPERATING LIMITS
MODEL (A1824)
| Max. length of leaf (m) | 1,8 | 1,5 | 1 |
| Max. weight of leaf (kg) | 200 | 215 | 250 |
TECHNICAL CHARACTERISTICS
MODEL (A1824)
| Protection rating (IP) | 44 |
| Power supply (V-50/60 Hz) | - |
| Power supply to motor (V) | 24 DC |
| Absorption (A) | 4 Max. |
| Power (W) | 100 |
| Manoeuvring time at 90° (s) | ADJUSTABLE |
| Duty/Cycle (%) | HEAVY-DUTY SERVICE |
| Torque (Nm) | 40 ÷ 2000 |
| Operating temperature (°C) | -20 ÷ +55 |
| Motor's heat protection (°C) | - |
AVAILABLE RANGE
001A1824
Irreversible gear motor with encoder for swing gates measuring up to 1.8m in length per leaf.
CONTROL PANEL
002ZL65
Control panel for one or two leaf swing gates, with programming display, onboard radio decoding and self-diagnosing safety devices.

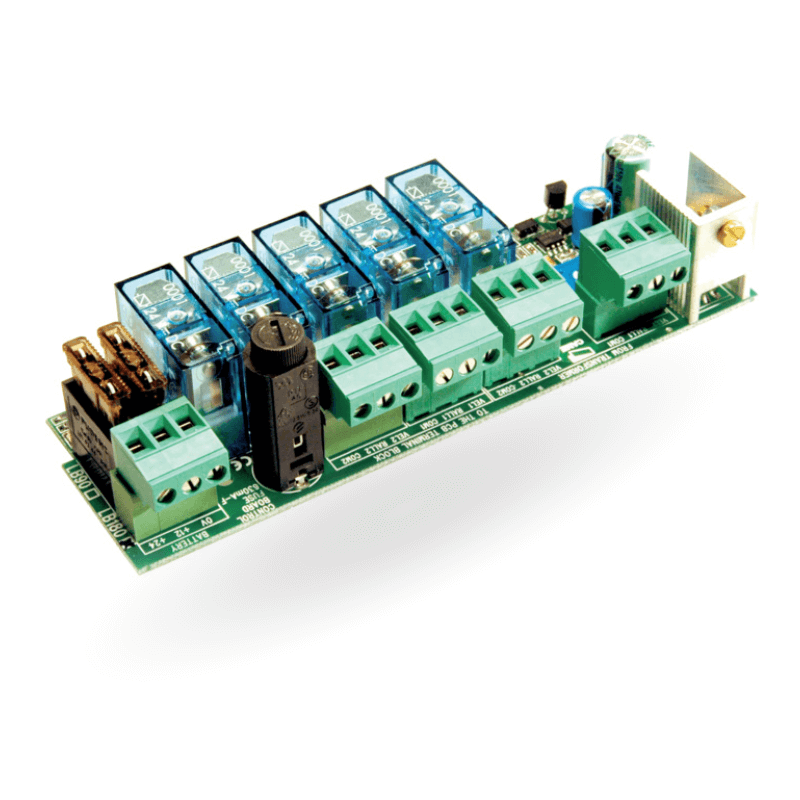

BATTERY BACK-UPS
002LB90
Circuit board for emergency operation and battery charging.
