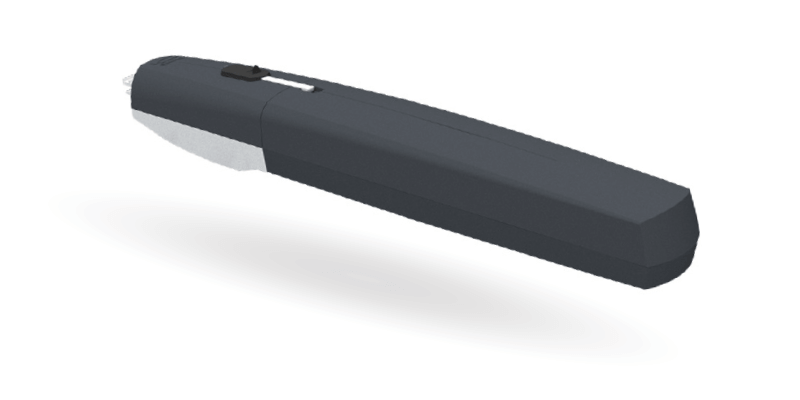

AXI 2000
SWING GATE MOTOR
The AXI swing gate motor is the ideal solution for connected single home and apartment block gates. For gate leaves of up to 2.5metres.
MAIN FEATURES
The AXI swing gate motor has a release lever system protected by a trilobe key; can be remote activated via steel cable. On-board mechanical stops, for controlling gate travel. Simplified connections and one, three-conductor cable. Silent and linear movement thanks to the conical torque reducer. Fully covered and protected endless screw. Hard-wired and wireless self-diagnosing
safety devices and compliance with current regulatory standards on impact forces. It can operate in emergency mode during power outages. Control board, with separate terminal board and display, for simpler installing and diagnosing. Save up to 250 different users. On-board Rolling Code and (Twin) Key Code radio-frequency decoding.

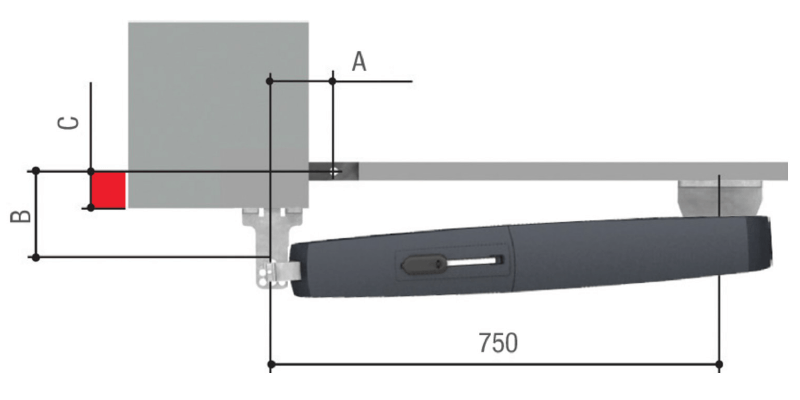

APPLICATION DIMENSIONS
MODEL (801MP-0030)
| LEAF OPENING (°) | A | B | C Max. |
| 90 | 130mm | 110 ÷ 170 | 60mm |
| 115 | 150mm | 110 ÷ 160 | 50mm |
OPERATING LIMITS
MODEL (801MP-0030)
| Max. length of leaf (m) | 1,5m | 2m |
| Max. weight of leaf (kg) | 250kg | 200kg |
| Max. leaf opening (°) | 115° | 115° |
TECHNICAL CHARACTERISTICS
MODEL (801MP-0030)
| Protection rating (IP) | 44 |
| Power supply to motor (V) | 24DC |
| Absorption (A) | 5 Max. |
| Power (W) | 120 |
| Manoeuvring time at 90° (s) | 15* |
| Duty/Cycle (%) | 50 |
| Torque (Nm) | 400 ÷ 2000 |
| Operating temperature (°C) | -20 ÷ +55 |
*Suggested minimum value with maximum travel speed and minimum slow-down speed.
AVAILABLE RANGE
801MPO-0030
AXI20DGS - Irreversible gear motor with encoder swing gates with leaves up to 2m long. RAL7024-grey colour.
CONTROL PANEL
002ZL65
Control panel for one or two leaf swing gates, with programming display, onboard radio decoding and self-diagnosing safety devices.

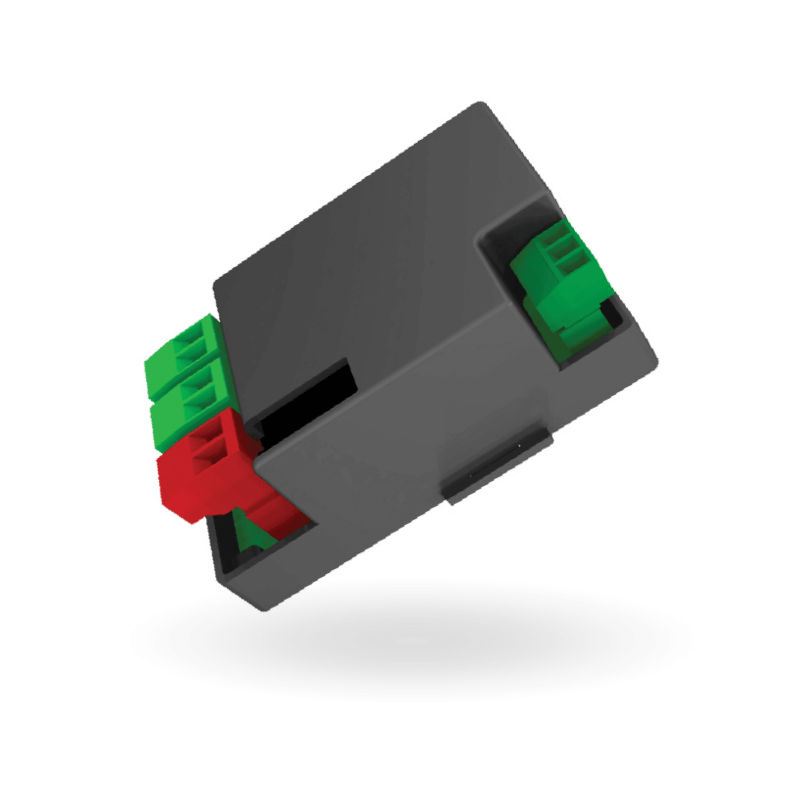

BATTERY BACK-UPS
002RLB
Circuit board for emergency operation and battery charging.
