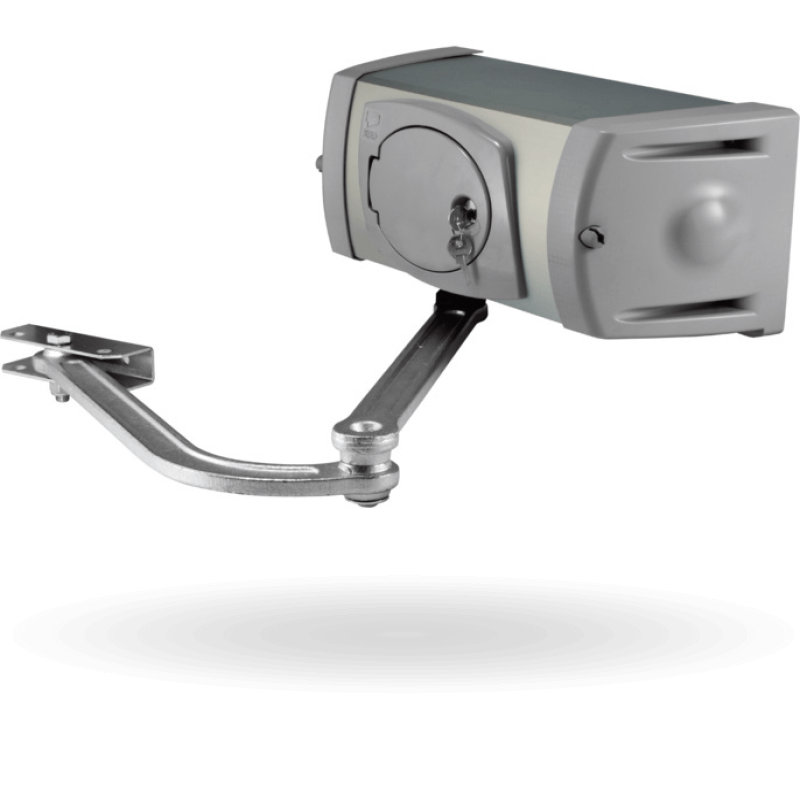

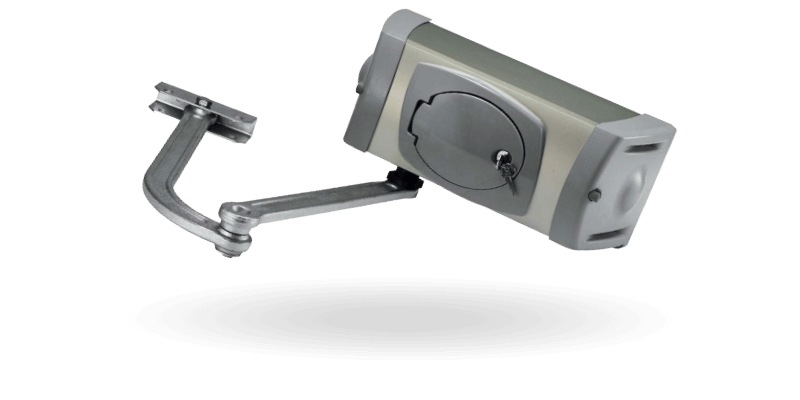

FERNI
SWING GATE MOTOR
The Ferni swing gate motor is the ideal solution for fitting onto large gate posts in single homes and apartment blocks, for gate leaves of up to 4 metres.
MAIN FEATURES
The Ferni swing gate motor is engineered and built to meet market needs. Its innovative design is sleek, solid, modern, anodized aluminium casing. The standard, folding drive arm can be replaced by the straight drive arm when lack of space is an issue. Other features include: EN tested and have encoder controlled
electronics. Easy to reach release hatch. Highly resistant to weathering. Made to be easily installed and connected it also features versatile limit-switches. Set up to fit the CAME KEY accessory for connecting to the cloud via CAME Connect (excluding the ZLJ14).

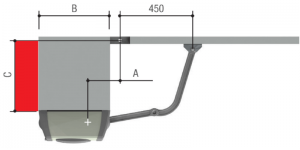

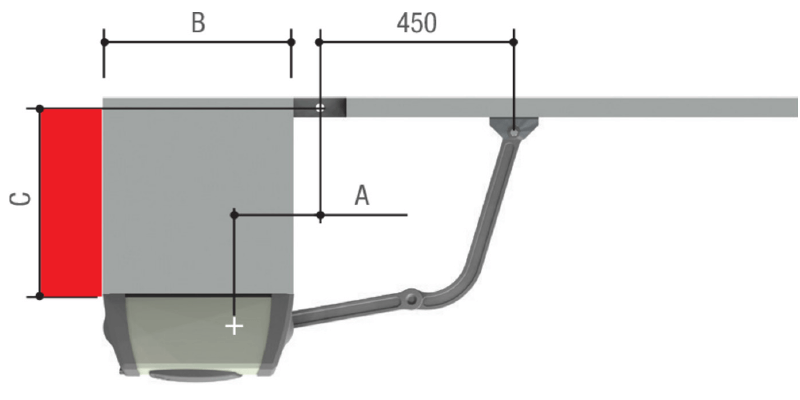

APPLICATION DIMENSIONS
MODEL (FE4024)
| LEAF OPENING (°) | A | C Max. |
| 90 | 110mm | 300mm |
| 90 | 150mm | 380mm |
OPERATING LIMITS
MODEL (FE4024)
| Max. width of leaf (m) | 4* | 3,5* | 3* | 2,5* | 2 |
| Max. weight of leaf (kg) | 400 | 450 | 500 | 600 | 800 |
*It is obligatory to fit an electric lock on the gate leaf.
TECHNICAL CHARACTERISTICS
MODEL (FE4024)
| Protection rating (IP) | 44 |
| Power supply to motor (V) | 24 DC |
| Absorption (A) | 7 Max. |
| Power (W) | 130 |
| Manoeuvring time at 90° (s) | ADJUSTABLE |
| Duty/Cycle (%) | HEAVY-DUTY SERVICE |
| Torque (Nm) | 360 |
| Operating temperature (°C) | -20 ÷ +55 |
AVAILABLE RANGE
001FE4024
Irreversible gear motor with folding drive arm for swing gates measuring up to 4m per leaf.
CONTROL PANEL
002ZLJ24
Multifunction control panel for swing gates with two leaves, graphic programming and alerting display, and self-diagnosing safety devices.
BATTERY BACK-UPS
002LB180
Circuit board for emergency operation and battery charging.
FERNI
SWING GATE MOTOR
The Ferni swing gate motor is the ideal solution for fitting onto large gate posts in single homes and apartment blocks, for gate leaves of up to 4 metres.
MAIN FEATURES
The Ferni swing gate motor is engineered and built to meet market needs. Its innovative design is sleek, solid, modern, anodized aluminium casing. The standard, folding drive arm can be replaced by the straight drive arm when lack of space is an issue. Other features include: EN tested and have encoder controlled electronics. Easy to reach release hatch. Highly resistant to weathering. Made to be easily installed and connected it also features versatile limit-switches. Set up to fit the CAME KEY accessory for connecting to the cloud via CAME Connect (excluding the ZLJ14).
APPLICATION DIMENSIONS
MODEL (FE4024)
| LEAF OPENING (°) | A | C Max. |
| 90 | 110mm | 300mm |
| 90 | 150mm | 380mm |
OPERATING LIMITS
MODEL (FE4024)
| Max. width of leaf (m) | 4* | 3,5* | 3* | 2,5* | 2 |
| Max. weight of leaf (kg) | 400 | 450 | 500 | 600 | 800 |
*It is obligatory to fit an electric lock on the gate leaf.
TECHNICAL CHARACTERISTICS
MODEL (FE4024)
| Protection rating (IP) | 44 |
| Power supply to motor (V) | 24 DC |
| Absorption (A) | 7 Max. |
| Power (W) | 130 |
| Manoeuvring time at 90° (s) | ADJUSTABLE |
| Duty/Cycle (%) | HEAVY-DUTY SERVICE |
| Torque (Nm) | 360 |
| Operating temperature (°C) | -20 ÷ +55 |
AVAILABLE RANGE
001FE4024
Irreversible gear motor with folding drive arm for swing gates measuring up to 4m per leaf.
CONTROL PANEL
002ZLJ24
Multifunction control panel for swing gates with two leaves, graphic programming and alerting display, and self-diagnosing safety devices.
BATTERY BACK-UPS
002LB180
Circuit board for emergency operation and battery charging.
FERNI
SWING GATE MOTOR
The Ferni swing gate motor is the ideal solution for fitting onto large gate posts in single homes and apartment blocks, for gate leaves of up to 4 metres.
MAIN FEATURES
The Ferni swing gate motor is engineered and built to meet market needs. Its innovative design is sleek, solid, modern, anodized aluminium casing. The standard, folding drive arm can be replaced by the straight drive arm when lack of space is an issue. Other features include: EN tested and have encoder controlled electronics. Easy to reach release hatch. Highly resistant to weathering. Made to be easily installed and connected it also features versatile limit-switches. Set up to fit the CAME KEY accessory for connecting to the cloud via CAME Connect (excluding the ZLJ14).
APPLICATION DIMENSIONS (mm)
MODEL (FE4024)
| LEAF OPENING (°) | A | C Max. |
| 90 | 110 | 300 |
| 90 | 150 | 380 |
OPERATING LIMITS
MODEL (FE4024)
| Max. width of leaf (m) | 4* | 3,5* | 3* | 2,5* | 2 |
| Max. weight of leaf (kg) | 400 | 450 | 500 | 600 | 800 |
*It is obligatory to fit an electric lock on the gate leaf.
TECHNICAL CHARACTERISTICS
MODEL (FE4024)
| Protection rating (IP) | 44 |
| Power supply to motor (V) | 24 DC |
| Absorption (A) | 7 Max. |
| Power (W) | 130 |
| Manoeuvring time at 90° (s) | Adjustable |
| Duty/Cycle (%) | Heavy-Duty Service |
| Torque (Nm) | 360 |
| Operating temperature (°C) | -20 ÷ +55 |
AVAILABLE RANGE
001FE4024
Irreversible gear motor with folding drive arm for swing gates measuring up to 4m per leaf.
CONTROL PANEL
002ZLJ24
Multifunction control panel for swing gates with two leaves, graphic programming and alerting display, and self-diagnosing safety devices.
